Rotary Vibrating Screen

  • Model: 600 - 1800 mm
  • Equipment Material: SUS304/316/316L/Carbon Steel
  • Mesh Size Scope: 0-300 mesh
  • Motor Power: 0.55-3 kw
  • Layers: 1-4 layers
  • Warranty: 18 months
  • rotary vibrating screen
  • rotary vibrating screen China
  • rotary vibrating screen sale
  • rotary vibrating screen factory
  • rotary vibrating screen manufacturer
■ Video
■ Specifications


Working Principle

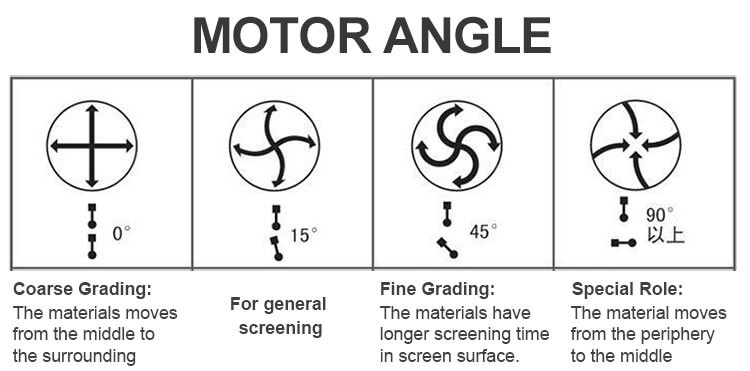

By means of unbalance hammer installed along the motor shaft, DY series three dimensional vibrating screens convert the rotation of the motor into a 3-D movement, horizontal, vertical and inclined movement, and then the 3-D movement is transferred to the screen surface, which leads to an involutes movement of the materials on the screen surface. That's why it is also called the rotary vibrating screen. Rotary vibrating screen can handle the material into the precision screening or probability screening by adjust the upper and lower ends of the phase angle of the hammer so as to change the movement trajectories of materials on the screen surface. It has the feature of long trajectory of materials and high utilization rate of screen surface.


Main Advantages
1. Rotary vibrating screen with high precision and high efficiency screening ablity and applied to all kinds of food/ chemical powder, granules.
2. 304 and 316 stainless steel material, make sure the quality of raw material.
3. New type of frame structure, long service life, only 3-5 minutes to replace the screen.
4. Fully automated, continuous 7/24 operation.
5. Fully closed structure, the powder don't float in the sky, the liquid don't leak, no mesh jams.
Application range:
1.Abrasive & Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
2.Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
3.Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc.
4.Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
5.Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
6.Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc.
7.Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc.

■ Technical Data
Model Power(kw) Valid Diameter of screen(mm) Volume(mm) Layers
DY-600-1S
DY-600-2S
DY-600-3S
0.55kw 550mm 800*800*680
800*800*780
800*800*880
1
2
3
DY-800-1S
DY-800-2S
DY-800-3S
0.75 kw 750mm 900*900*780
900*900*930
900*900*1080
1
2
3
DY-1000-1S
DY-1000-2S
DY-1000-3S
1.5 kw 950mm 1160*1160*880
1160*1160*1030
1160*1160*1180
1
2
3
DY-1200-1S
DY-1200-2S
DY-1200-3S
1.75 kw 1150 mm 1360*1360*980
1360*1360*1160
1360*1360*1360
1
2
3
DY-1500-1S
DY-1500-2S
DY-1500-3S
2.2 kw 1450mm 1850*1850*1130
1850*1850*1330
1850*1850*1550
1
2
3
DY-1800-1S
DY-1800-2S
DY-1800-3S
3 kw 1750mm 2200*2200*1360
2200*2200*1460
2200*2200*1680
1
2
3
