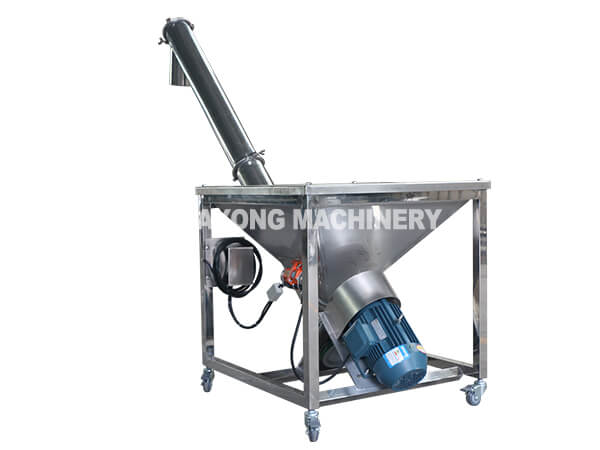

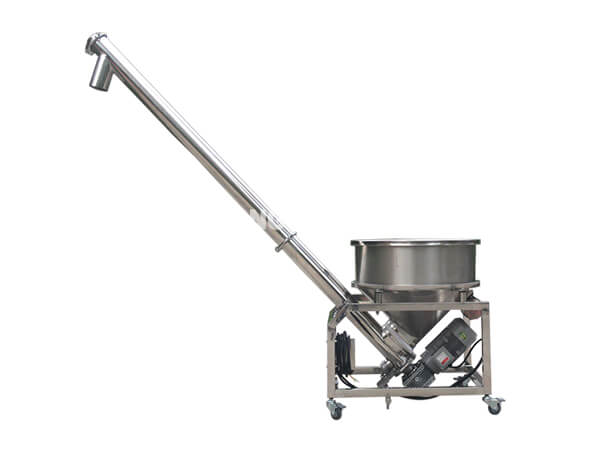

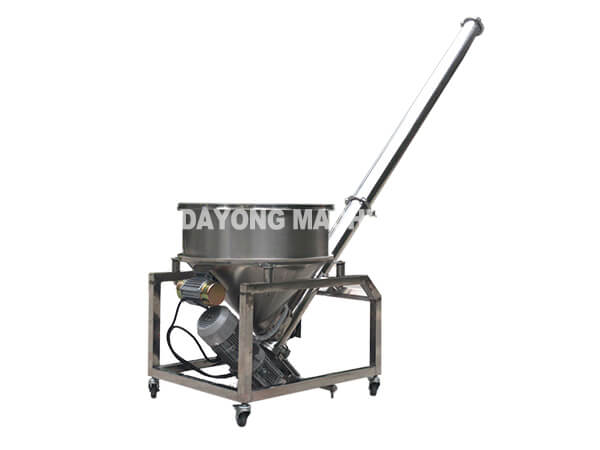

Screw conveyor

  • Model: LSY 100
  • Metric diameter of screw (mm): 90
  • Rotary speed of main axis (r/min): 300
  • Diameter of) main case(mm: 108
  • Max capacity (t/h): 7
  • screw conveyor
  • screw conveyor China
  • screw conveyor supplier
  • screw conveyor sale
■ Video
■ Specifications
Screw conveyor is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal, grain, etc.
It is suitable for conveying powder, granulated and small lump materials, such as coal, ash, slag, cement, food, etc., not suitable for transporting perishable, big viscosity, easily agglomerate or high temperature, and a larger corrosive materials.
Small cross section size, good sealing performance, stable operation and reliable, can be loading and unloading from multiple points of screw middle body, simple operation, easy to maintain, etc.
Screw conveyor is suitable for the working environment temperature which is between 20 ℃ to 50 ℃;Including the horizontal screw conveyor, the material of transportation temperature should be lower than 200 ℃;Conveying distance less than 40 meters, maximum not exceeding 70 meters; Vertical screw conveyor, its conveying material should not be more than the temperature of 80 ℃, the vertical height is not more than 8 meters.

■ Technical Data
Model
LSY 100 LSY 120 LSY 140 LSY 160 LSY 200 LSY 250 LSY 300 LSY 400
Pitch & diameter of screw
(mm)
90 115 135 163 185 237 285 362
Rotary speed of main axis
(r/min)
300 300 300 308 260 200 170 170
Outer Diameter(mm) 108 133 159 194 219 273 325 402
Max capacity (t/h) 7 10 15 25 40 60 90 120
Max conveying length  (m) 8 10 12 15 18 25 25 25
Working angle (degree) 0~60 0~60 0~60 0~60 0~60 0~60 0~60 0~60
Motor model L≤7M Y90S-4 Y100L1-4 Y100L2-4 Y132S-4 Y132M-4 Y160L-6 Y180M-4 Y180M-4
Power (kw) 1.1 2.2 3 5.5 7.5 11 18.5 18.5
model L≥7M Y100L1-4 Y100L2-4 Y112M-4 Y132M-4 Y160M-4 Y180L-6 Y180L-4 Y180L-4
Power ( kw) 2.2 3 4 7.5 11 15 22 22
