Product Description

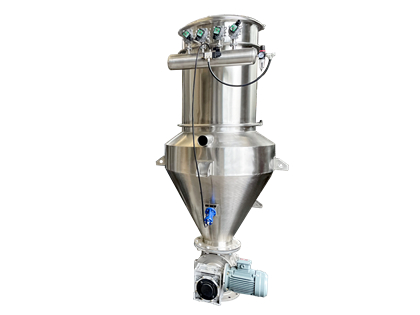

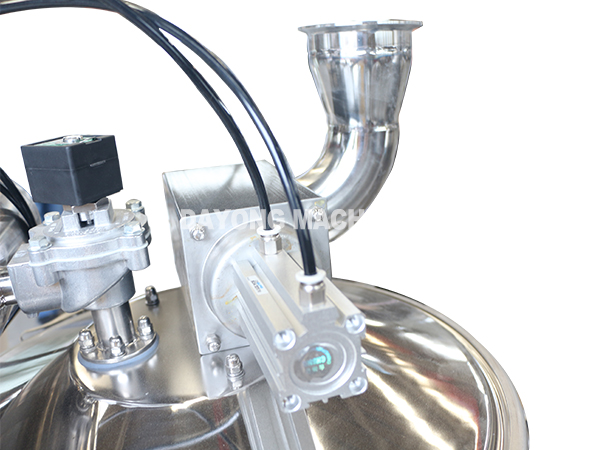

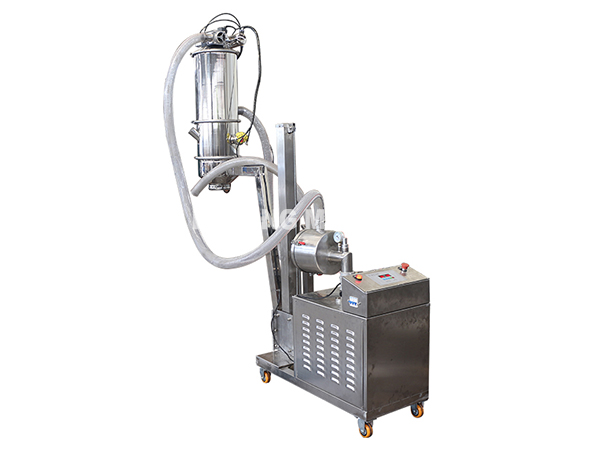

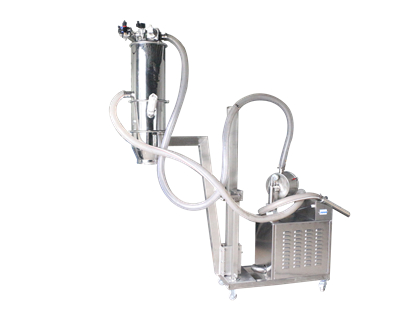

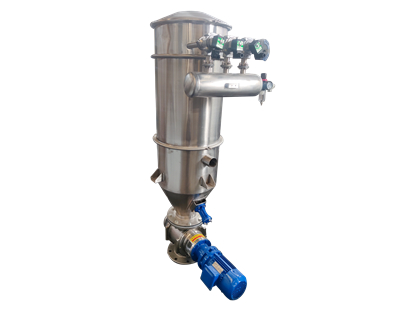

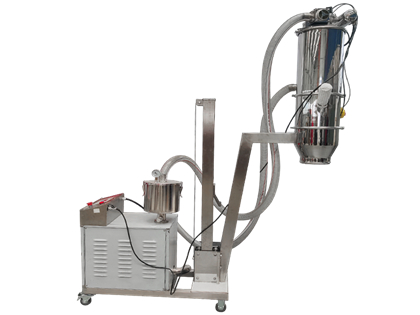

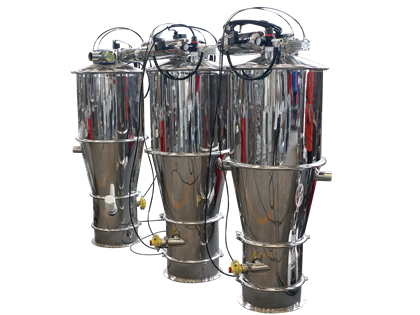

The ZKS vacuum feeder uses a vacuum pump to suction the air, so that the inlet of the suction nozzle and the whole system are in a certain vacuum state. The powder particles are sucked into the nozzle along with the outside air to form a gas stream, which passes through the suction pipe and reaches the hopper in the hopper. Gas and material separation. The separated material enters the receiving equipment. The feeding and discharging are completed by continuously opening and closing the pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.

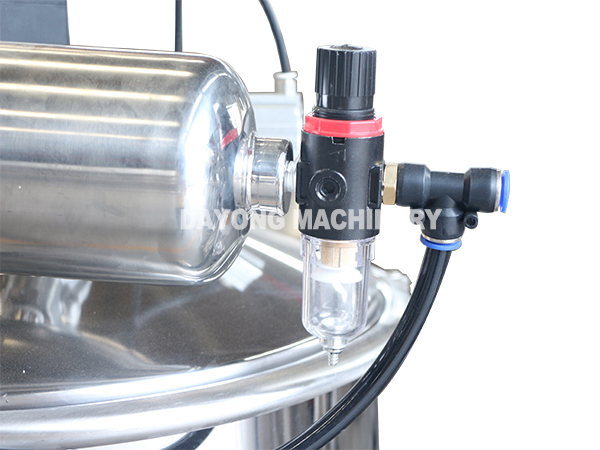

The vacuum feeder is equipped with a compressed air back flushing device. Each time the material is discharged, the compressed air pulse back flushing the filter, and the powder adsorbed on the surface of the filter is dropped to ensure the normal operation of the suction.
.jpg)
Using Scope
Vacuum conveyors can be widely used in magnetic materials industry, food processing industry, plastic processing industry, lithium power industry, coatings industry, chemical industry and pharmaceutical industry etc.
The ZKS vacuum feeder uses a vacuum pump to suction the air, so that the inlet of the suction nozzle and the whole system are in a certain vacuum state. The powder particles are sucked into the nozzle along with the outside air to form a gas stream, which passes through the suction pipe and reaches the hopper in the hopper. Gas and material separation. The separated material enters the receiving equipment. The feeding and discharging are completed by continuously opening and closing the pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.
The vacuum feeder is equipped with a compressed air back flushing device. Each time the material is discharged, the compressed air pulse back flushing the filter, and the powder adsorbed on the surface of the filter is dropped to ensure the normal operation of the suction.
Main Advantages
1.Dust free conveying and low maintenance
2.Clean easily between batches
3.Move material in any direction
4.Reduce labor cost
5.Made by SUS304 or 316L to meet GMP sanitary standard
6.No tools needed to change the filters
StructureUsing Scope
Vacuum conveyors can be widely used in magnetic materials industry, food processing industry, plastic processing industry, lithium power industry, coatings industry, chemical industry and pharmaceutical industry etc.
■ Technical Data
|
Model |
Power (kw) |
Capacity (kg/h) |
|
ZKS-1 |
1.5 |
400 |
|
ZKS-2 |
2.2 |
600 |
|
ZKS-3 |
3 |
1200 |
|
ZKS-4 |
5.5 |
2500 |
|
ZKS-5 |
5.5 |
3200 |
|
ZKS-6 |
5.5 |
3200 |
|
ZKS-7 |
7.5 |
6000 |
|
ZKS-10-6 |
7.5 |
6000 |
|
ZKS-20-5 |
11 |
5000 |
