From West Room 5, 1st Floor, Building 18, Huilong Yangguang Mingyuan, New District, Xinxiang, Henan, China (Mainland). ■ Video
■ Specifications

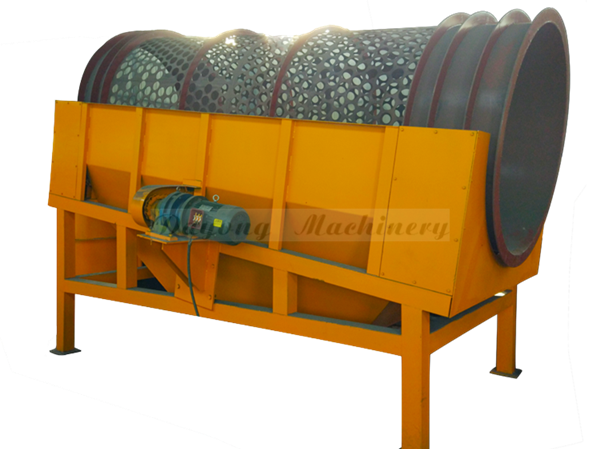

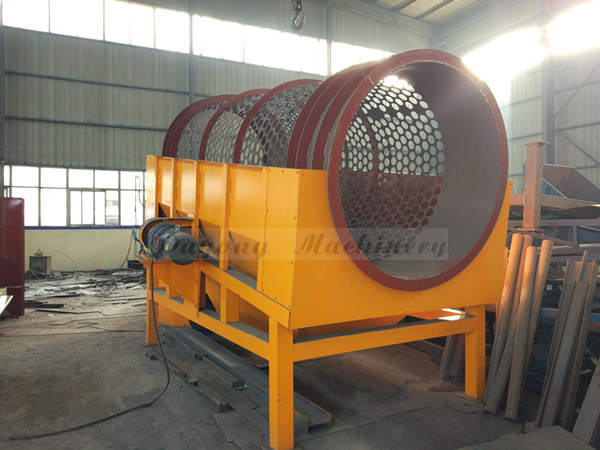

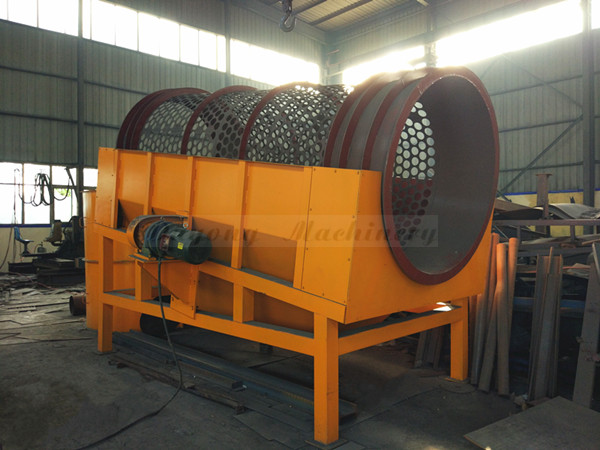

Introduction of Trommel Screen:
Certificates:
1.ISO International Standards ensure that products and services are safe, reliable and of good quality.
2.CE certification is designed to protect EU consumers by regulating products to reduce possible dangers to people and the environment.
1.Trommel drum screen is mainly consists of motor, reducer, drum units, sealing cover, support, etc.
2.Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis.
3.When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer of trommel screen, substandard materials come out by the end of trommel screen.
Features of Trommel Screen:1. It is durable and low maintenance cost, with 18 months warranty, 0 purchasing risk.
2. It is designed by your requirements, meet different handling capacity and working site.
3. It is fully enclosed by sealing structure, no dust pollution, more suit for high standard working conditions.
4. Install the automatic cleaning brush on the top of trommel screen to avoid the blockage.
5. The Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency for long life.
6. Variable application range-Compost, chemical, coal, plastic, recycling, metallurgy, mineral-selecting etc.
6. Variable application range-Compost, chemical, coal, plastic, recycling, metallurgy, mineral-selecting etc.
Certificates:
1.ISO International Standards ensure that products and services are safe, reliable and of good quality.
2.CE certification is designed to protect EU consumers by regulating products to reduce possible dangers to people and the environment.
■ Technical Data
|
Model |
Trommel Dia. |
Trommel Length |
Screen Segment No. |
Aperture Size |
Power |
Inclined Angle |
Handling Capacity |
|
DYT600 |
φ600 |
2-4m |
1-2 |
5-35mm |
2.2-3kw |
0-7° |
1-5m³/h |
|
DYT800 |
φ800 |
2-5m |
1-3 |
5-40mm |
3-5.5kw |
0-7° |
2-8m³/h |
|
DYT1000 |
φ1000 |
2-6m |
1-4 |
5-50mm |
4-7.5kw |
0-7° |
5-10m³/h |
|
DYT1200 |
φ1200 |
3-8m |
1-4 |
5-60mm |
5.5-11kw |
0-7° |
8-15m³/h |
|
DYT1500 |
φ1500 |
3-10m |
1-5 |
5-60mm |
7.5-15kw |
0-7° |
20-50m³/h |
|
DYT2000 |
φ2000 |
4-12m |
1-5 |
5-75mm |
7.5-18.5kw |
0-7° |
50-80m³/h |
|
DYT2500 |
φ2500 |
5-12m |
1-6 |
5-90mm |
11-18.5kw |
0-7° |
80-150m³/h |
Note: We accept OEM service, if you have special request for trommel screen, please email us or leave your message, our engineer will timely contact with you.
