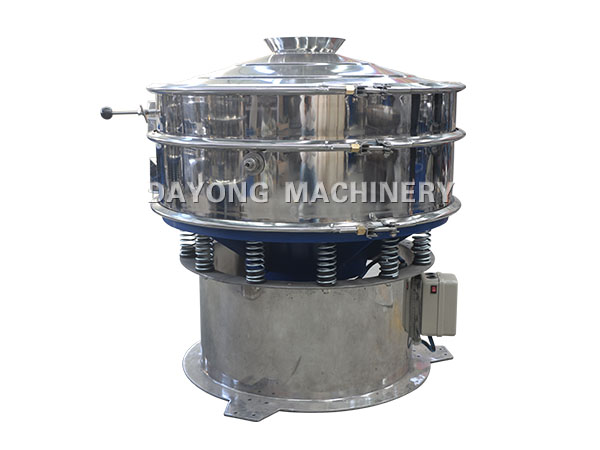

high precision resin powder vibrating screening machine

  • Model: DYC1000-1S
  • Screen mesh size: 40 mesh
  • Capacity: 200kgs/h
  • Material: Stainless steel 304
  • resin powder vibrating screening
  • resin powder vibrating screening machine
  • resin powder vibrating screening machine
  • resin powder vibrating screening machine
■ Specifications
Xinxiang Vibration Equipment Co., Ltd. is a manufacture with independent research and development, design and production, for different customer real needs, we could provide custom screening, conveying, crushing equipment.
The following is customized resin powder screening solution for client:

Customer raw materials: resin powder
Material characteristics: Static electricity, easy to block sieve

Customer requirements:
1) 40 mesh
2) 200kgs/h treatment capacity
3) using SUS304 stainless steel

After the test and analysis from technical team, and the inference of the customer's on-site use models, Xinxiang Vibration Equipment Co., Ltd recommended the use of DYC1000-1S ultrasonic vibrating screen.
At present, customers have received the equipment, and put into production, screening efficiency has been fully affirmed the customer.

■ Technical Data

Model Power Sieving diameter Effective area (m2) Volume (mm) Nets layer
DYC600-1S 0.55 550mm 0.2124 800*800*680 1
DYC800-1S 0.75 750mm 0.4072 900*900*780 1
DYC1000-1S 1.5 950mm 0.6221 1160*1160*880 1
DYC1200-1S 1.75 1150mm 0.9331 1360*1360*980 1
