Vertical screw conveyor

  • Height: 7 m
  • Length: 4 m
  • Diameter of screw: Level screw: 250 mm Vertical scrw: 250 mm
  • Power: Level: 5.5kw Vertical: 11kw
  • Capacity: 20m³/h

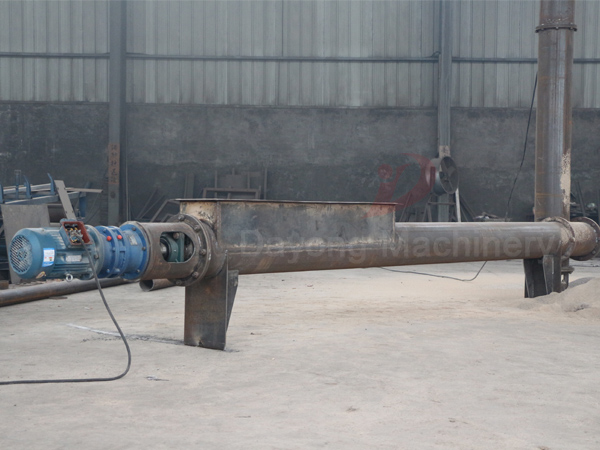

  • vertical-screw-conveyor-2

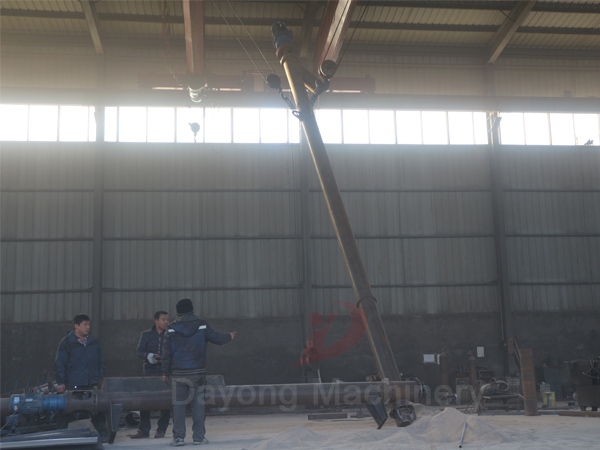

  • vertical-screw-conveyor-3

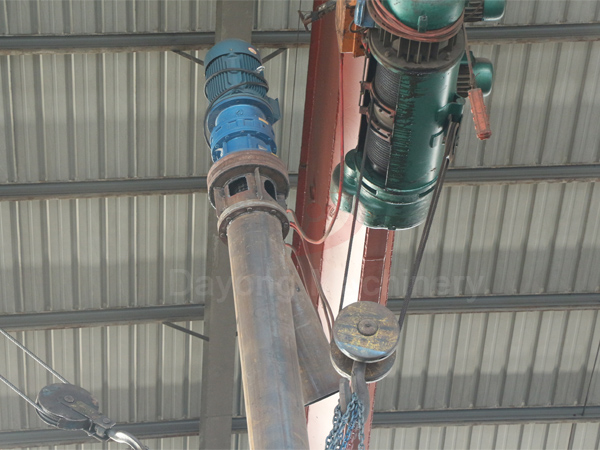

  • vertical-screw-conveyor-4
  • vertical-screw-conveyor-5

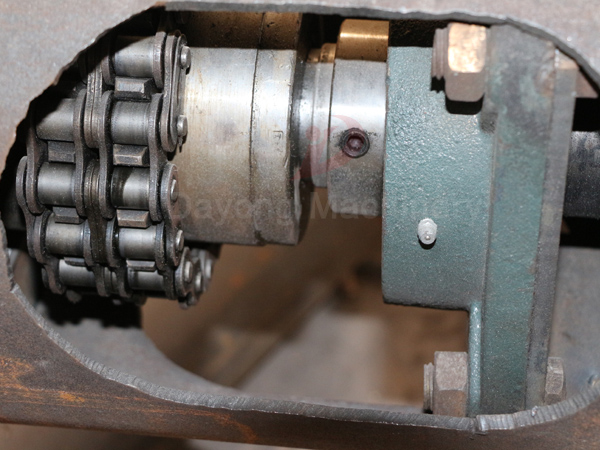

  • vertical-screw-conveyor-6
■ Video
■ Specifications
Distinctive Features:

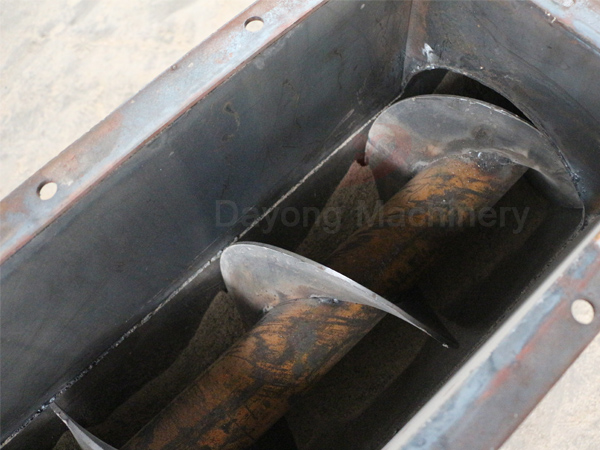

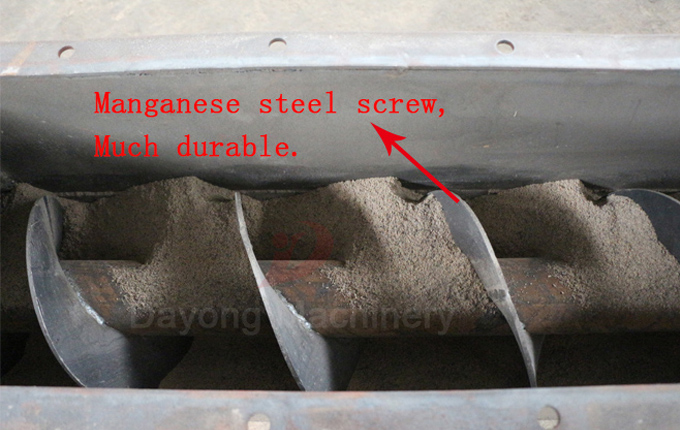

1.  Manganese steel screw: The level and vertical screw both adopts manganese steel material, much durable.

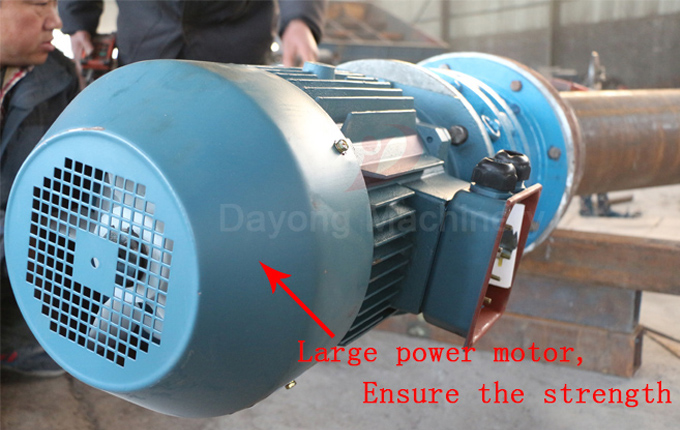

2. Large power motor: Both vertical and level parts adopt large power motor for ensuring enough strength.

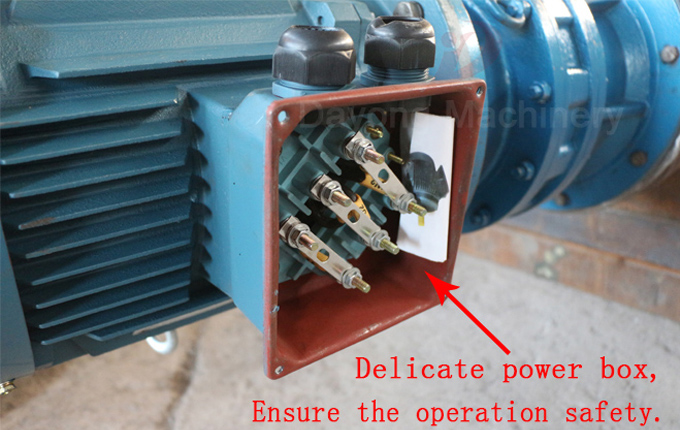

3. Delicate power box: This power box was sealed well in case of the powder enter into.

4. Guranteed reducer: This screw conveyor adopts advanced reducer only for ensuring accurate transformation.

■ Technical Data

Model

LSY 160

LSY 200

LSY 250

LSY 300

LSY 400

Metric diameter of screw (mm)

163

185

237

285

362

Rotary speed of main axis (r/min)

308

260

200

170

170

Diameter of main case(mm)

194

219

273

325

402

Max capacity (t/h)

25

40

60

90

120

Max conveying length L (m)

15

18

25

25

25

Working angle (degree)

0~60

0~60

0~60

0~60

0~60

Motor

model

L≤7M

Y132S-4

Y132M-4

Y160L-6

Y180M-4

Y180M-4

Power (kw)

5.5

7.5

11

18.5

18.5

model

L≥7M

Y132M-4

Y160M-4

Y180L-6

Y180L-4

Y180L-4

Power ( kw)

7.5

11

15

22

22
