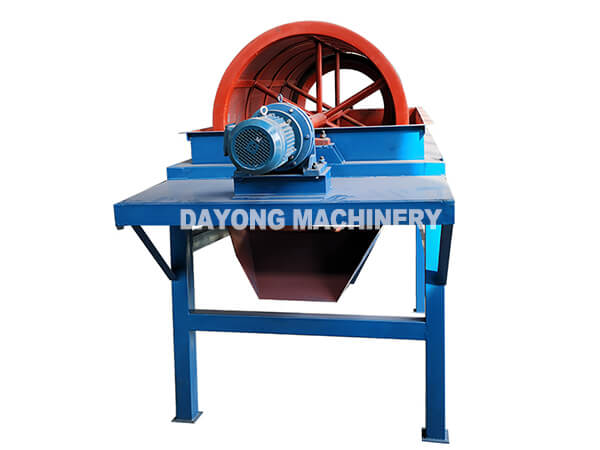

Rotary Screen

  • Name: Rotary Screen
  • Model: DYT1530
  • Trommel Length: 3000mm
  • Trommel Diameter: 1500mm
  • Capacity: 20m3/h
  • Power: 7.5kw
  • rotary screen 2
  • rotary screen 3
  • rotary screen 4
  • rotary screen 5
  • rotary screen 6
■ Video
■ Specifications
 Product Introduction
Rotary Drum Trommel Screen is consist of five parts as drum, frame, hopper, reducer and motor. After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.
Product Advantages
1.Configured for economical & efficient classification, screening and grading.
2.Heavy duty trommel drum with lifters at the front to facilitate material break up.
3.Screen replaceable for different mesh sizes.
4.Multiple screen size.
5.Easily changed screen plates.
6.Largest processing capacity in the industry.
7.Heavy duty feed hopper and extension.
8.Discharge chute.
9.Gear drive mechanism.
10.Variable speed drive mechanism.
11.Technical specification of Gold Mineral Processing.
Applicable Industry
Gold Trommer Sieve is a special designed classifying equipments for power plant, coking plant, building materials, metallurgy, chemiical industry, mining and so on , which improved classifying system's production capacity and reliability.
It is mainly applied to quarry factory to classify big and small size stones, and separate slime and stone powder, quarry factory is use to sand and stone separation, coal industry use to lump coal and powder coal separation and washing (parts of coal; Washing plant), chemical industry, mineral processing industry for big size and small size classification and de-sliming or de-watering.

■ Technical Data
Technical Parameter


Model

Trommel Dia.

Trommel Length

Screen Segment No.

Aperture Size

Power

Inclined Angle

Handling Capacity

DYT600

φ600

2-4m

1-2

5-35mm

2.2-3kw

0-7°

1-5m³/h

DYT800

φ800

2-5m

1-3

5-40mm

3-5.5kw

0-7°

2-8m³/h

DYT1000

φ1000

2-6m

1-4

5-50mm

4-7.5kw

0-7°

5-10m³/h

DYT1200

φ1200

3-8m

1-4

5-60mm

5.5-11kw

0-7°

8-15m³/h

DYT1500

φ1500

3-10m

1-5

5-60mm

7.5-15kw

0-7°

20-50m³/h

DYT2000

φ2000

4-12m

1-5

5-75mm

7.5-18.5kw

0-7°

50-80m³/h

DYT2500

φ2500

5-12m

1-6

5-90mm

11-18.5kw

0-7°

80-150m³/h


FAQ

Tell me the following questions, Then we will make the suitable solution and favorable price to you!
1. Material :  _____
2. Moisture: _____%
3. Capacity: : ________kg/ hour
4. Screen layer:  _______
5. Screen mesh size:______ mesh . ______ mesh. ______ mesh
6. Voltage:______V, Frequency:______HZ, 3 phase
7. SS304/316L stainless steel or Q235A carbon steel?
