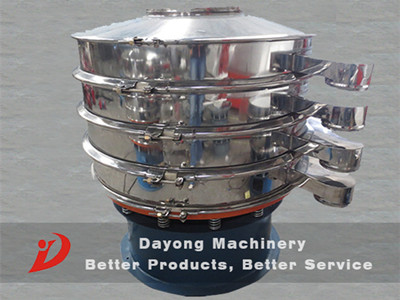

Capsicum powder vibrating screen

Brief Introduction of this machine:
Capsicum powder vibrating screen is a general spin-vibrating screen with a mature technology, which also is a standardized and nonlinear vibrating machine. Thus, it is very obvious to test its function of screening little particle and micro powder in grade separation. Capsicum powder vibrating screen can be used for dry-sieving and wet-sieving, mostly used in construction materials, metallurgy, casting industry, abrasives industry, chemical industry, medicine industry, food industry.The screen and the frame can be made of several materials; the process is not simplex; most important is the screen can be superposed. Capsicum powder vibrating screen is fully enclosed without the pollution in the spilling of the materials and stive, and it is easy to set another assistant equipment such as desiccator, cooler, dust catcher, cleaner.

Distinctive Features:
1. Simple operation, easy to clean; Small volume, less occupation, move anywhere as need.
2. No plug in mesh, No dust fly; all kinds of powder and slurry can be screened.
3. The screen can be set up to 5 layers, recommended at most 3 layers.
4. New design in screen and frame, last a long life; easy to replace within 5 minutes; high efficiency when continuous work.

Major Parameters:

Type	DY-600	DY-800	DY-1000	DY-1200	DY-1500	DY-1800	DY-2000
Diameter(mm)	540	730	900	1100	1400	1700	1886
Effective sieving area(㎡)	0.2281	0.4183	0.6359	0.9499	1.5386	2.2687	2.7922
Mesh	2-500
Layer	1-5	1-5	1-5	1-5	1-5	1-3	1-3
Vibration motor power(KW)	0.55	0.75	1.1	1.5	2.2	3.0	3.7
General motor power (KW)	0.75	1.1	1.5	1.5	2.2	2.2	3.0
